Create a Shakudo ServiceAccount with Custom Image Pull Secret

This guide creates a ServiceAccount in the hyperplane-pipelines namespace and mounts an image pull secret (secret-based auth) so Pods can pull private images.

You can use hyperplane-jhub namespace if you wish to use it in Sessions for development.

Here is how purposes are mapping into namespaces: Development: hyperplane-pipelines Workloads: hyperplane-jhub

Prerequisites

• Permissions to create secrets, and service accounts.
• An existing private repository with images to pull.

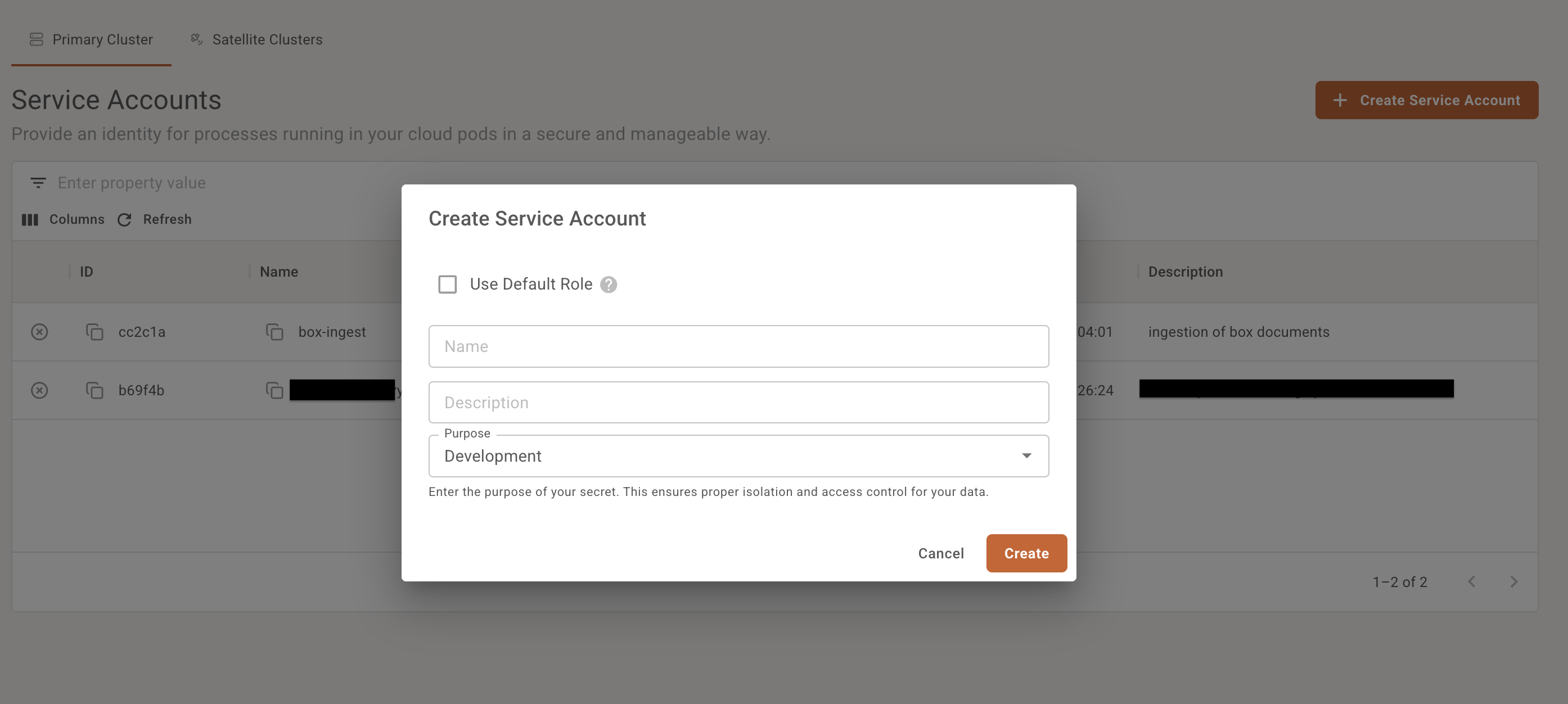

1 Create a service account

The name can be hyperplane-pipelines-sa as an example.

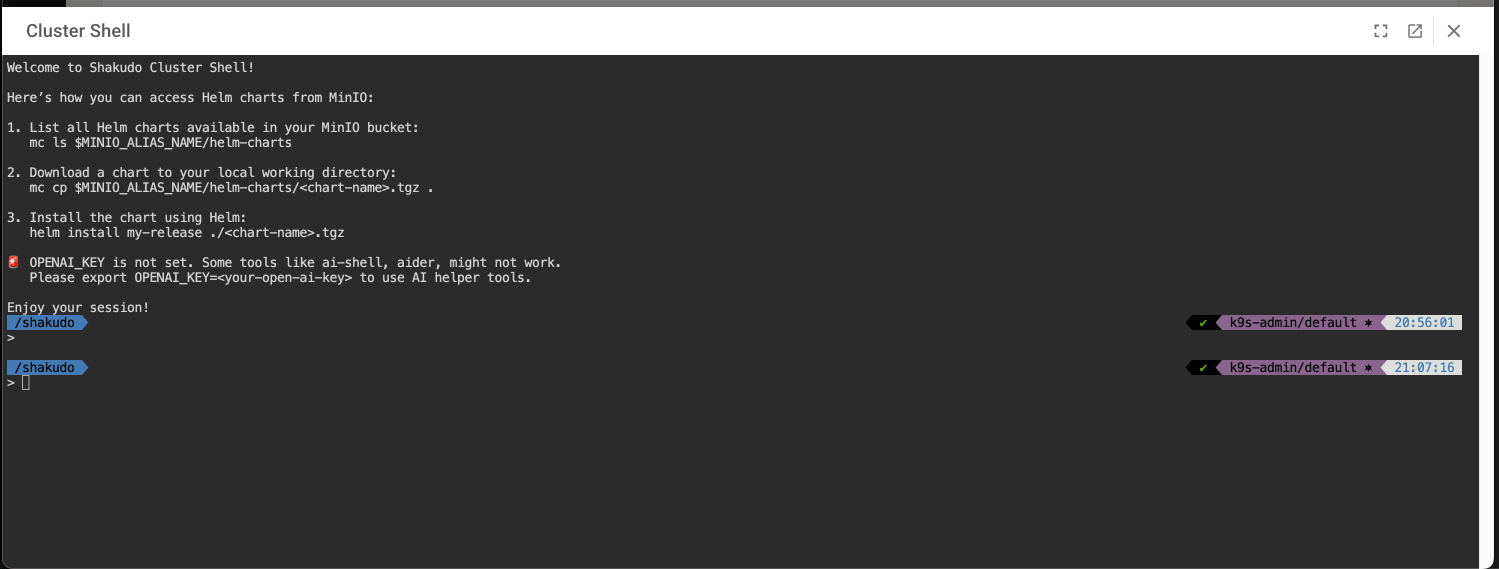

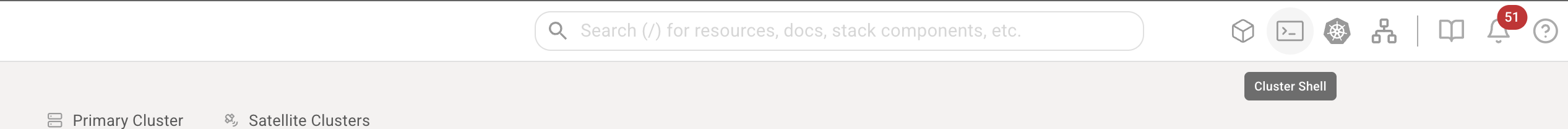

Following steps will be finished in Shakudo cloud terminal.

2 Set variables

NS=hyperplane-pipelines
SA_NAME=hyperplane-pipelines-sa
PULL_SECRET_NAME=ecr-pull-secret

3 Create the image pull secret (secret-based auth)

Create a docker-registry secret using your existing username password.

kubectl create secret docker-registry "$PULL_SECRET_NAME" \
    --docker-server="$PRIVATE_REGISTRY" \
    --docker-username=username \ # This should be your username
    --docker-password-stdin \
    -n "$NS"

If the secret exists and you need to refresh the token, delete and recreate it:

kubectl delete secret "$PULL_SECRET_NAME" -n "$NS" --ignore-not-found
kubectl create secret docker-registry "$PULL_SECRET_NAME" \
    --docker-server="$PRIVATE_REGISTRY" \
    --docker-username=username \ # This should be your username
    --docker-password-stdin \
    -n "$NS"

4) Patch the ServiceAccount and attach the imagePullSecret

kubectl patch serviceaccount "$SA_NAME" -n "$NS" \
  -p "{\"imagePullSecrets\":[{\"name\":\"$PULL_SECRET_NAME\"}]}"

5) Verify

kubectl get sa "$SA_NAME" -n "$NS" -o yaml | grep -A2 imagePullSecrets

You should see the secret name under imagePullSecrets.

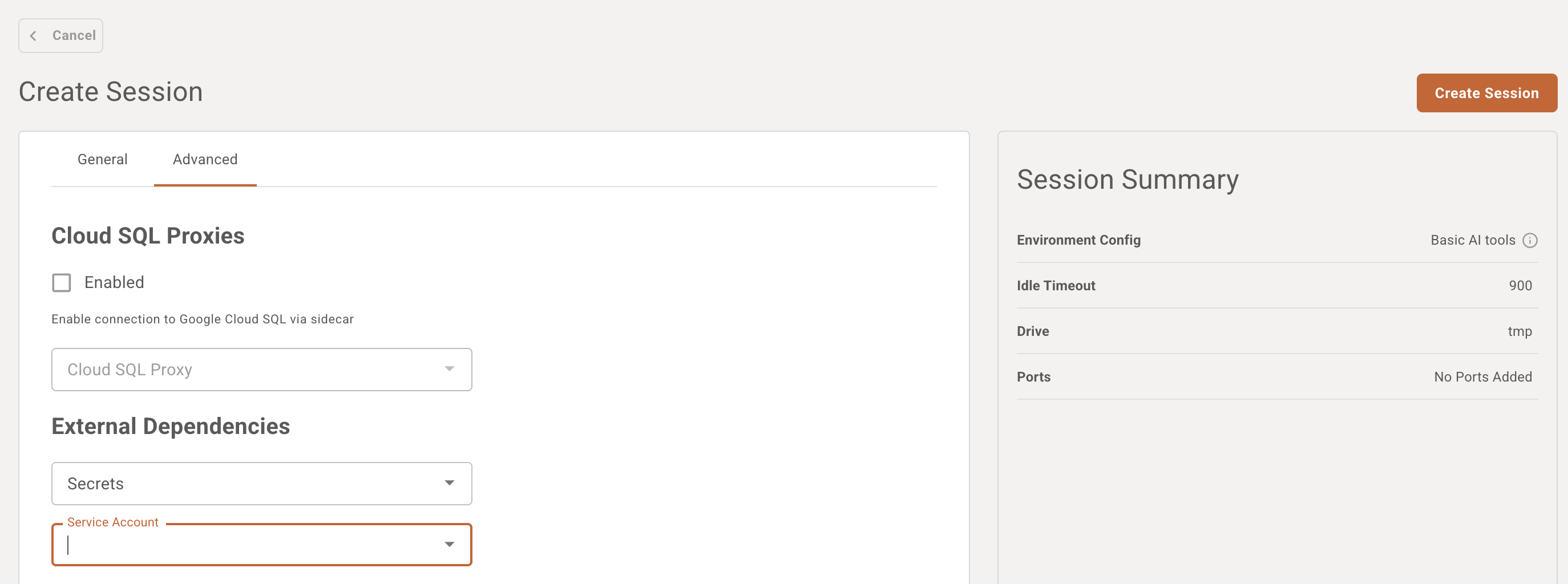

6) Use the ServiceAccount in your workloads

Reference the ServiceAccount so Pods inherit the pull secret.

(Optional) Attach the pull secret to the default ServiceAccount, to allow every pod within the namespace be able to pull the images by default.

kubectl patch serviceaccount default -n "$NS" \
  -p "{\"imagePullSecrets\":[{\"name\":\"$PULL_SECRET_NAME\"}]}"

Troubleshooting

• ImagePullBackOff / ErrImagePull:
  • Secret must exist in the same namespace as the Pod.
  • Ensure --docker-server matches your custom registry.
  • Check image URI correctness and repository permissions.
